Solar Max LED 160 + 80

Model	LED 160	LED 80
Diameter of light head	830mm	640mm
Max. illuminance (Lux)	180,000 Lux at 1M	160,000 Lux at 1M
Color temperature(K)	5 Step (3,500K ~ 5,500K)	5 Step (3,500K ~ 5,500K)
Color Render Index(Ra.R9.R13)	98. 98. 98.	98. 98. 98.
Brightness control	10 Step (10~100%)	10 Step (10~100%)
illuminance Range	Φ 100 ~ 350 mm	Φ 100 ~ 300 mm
Depth of illuminance At60%	1,400 mm	1,200 mm
Number of LEDs	160 LEDs	80 LEDs
Lamp type	Bi Conves Lens	Bi Conves Lens
LED Life time	60,000 Hours ↑	60,000 Hours ↑
Focus control location	Handle of center	Handle of center
Handle	Easily detachable and sterilizable	Easily detachable and sterilizable
Power Supply	140W AC220V 50/60HZ	100W AC220V 50/60HZ
Touch on/off (Option)	Touch Screen (Button)	Touch Screen (Button)

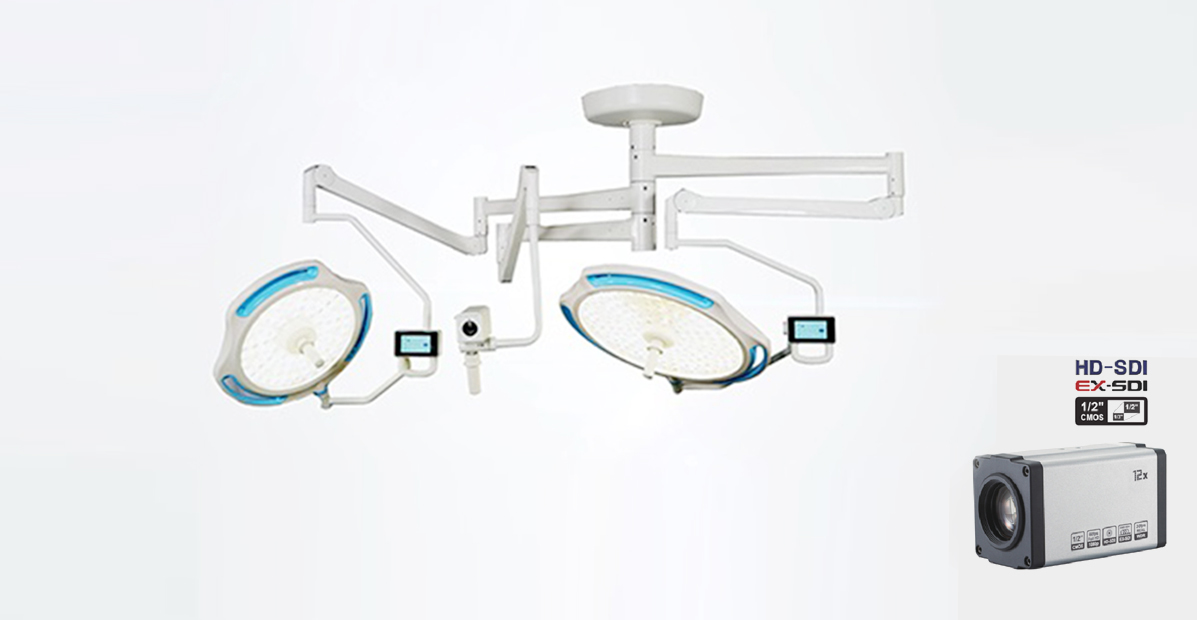

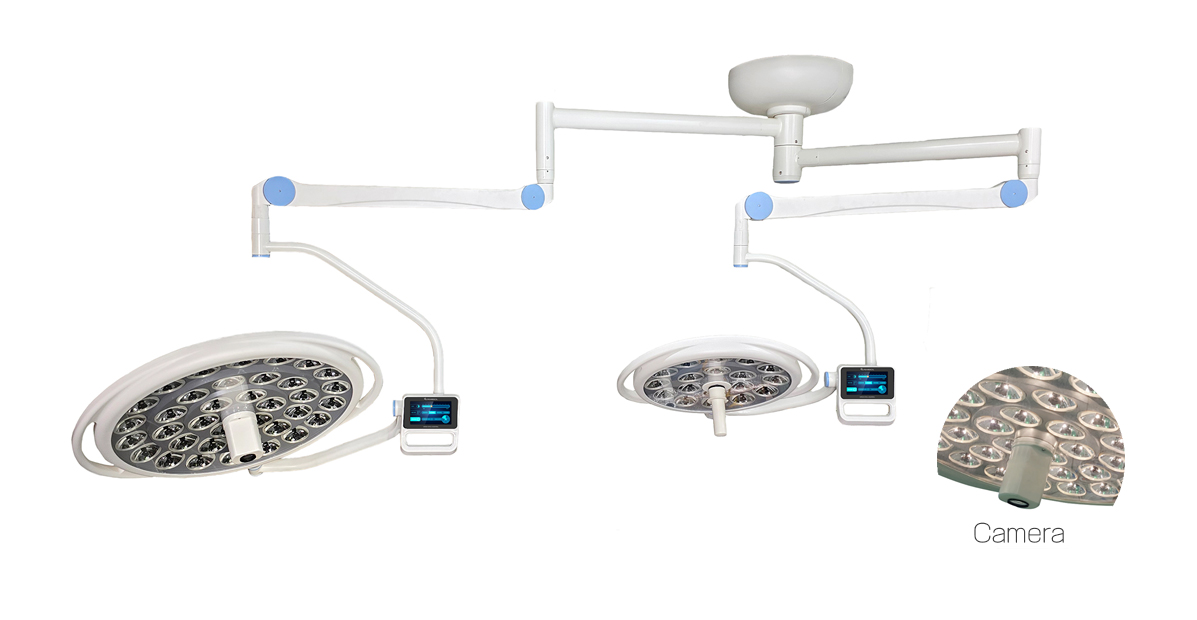

SolarMax LED160 + 80 with Camera

Camera
		MB-S129	MB-S128
Image Sensor		1/2" Sony CMOS Sensor
Total Pixels		1952(H) x 1113(V) = 2.17M Pixels	1952(H) x 1241(V) = 2.42M Pixels
Active Pixels		1937(H) x 1097(V) = 2.12M Pixels	1937(H) x 1097 (V) = 2.12M Pixels
Video Format		1080p@60/50fps, 1080i@60/50fps, 1080p@30/25fps, 720p@60/50fps, 720p@30/25fps	1080p@60/50fps, 1080p@30/25fps, 720p@60/50fps, 720p@30/25fps
Min.Illumination	color	0.01 lux / DSS 0.001 lux	0.15 lux / DSS 0.0375 lux
	BW	0.002 lux / DSS 0.0002 lux	0.01lux / DSS 0.002 lux
S/N Ratio		more than 50dB (AGC off)
Video Output		HD-SDI, EX-SDI, TVI, CVBS

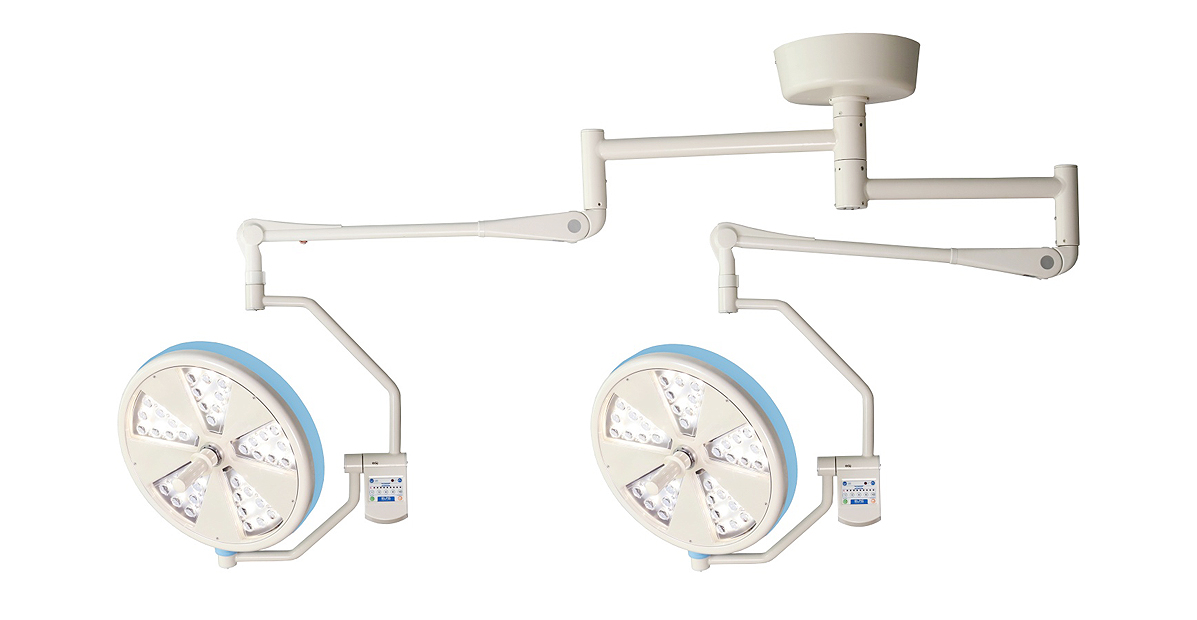

Solar Max LED 108 + 54 Built in Camera

Model	LED 108	LED 54
Diameter of light head	830mm	640mm
Max. illuminance (Lux)	160,000 Lux at 1M	140,000 Lux at 1M
Color temperature(K)	5 Step (3,500K ~ 5,500K)	5 Step (3,500K ~ 5,500K)
5Step( 3,500K ~ 5,500K)	98	98
Color Render Index(Ra. R9. R13.)	98. 98. 98.	95. 95. 95.
Brightness control	10 Step (10~100%)	10 Step (10~100%)
illuminance Range	Φ 100 ~ 350 mm	Φ 100 ~ 350 mm
Depth of illuminance At 60%	1,200 mm	800 mm
Number of LEDs	108 LEDs	54 LEDs
Lamp type	Reflectors	Reflectors
LED Life time	60,000 Hours ↑	60,000 Hours ↑
Focus control location	Handle of center	Handle of center
Handle	Easily detachable and sterilizable	Easily detachable and sterilizable
Power Supply	100W AC220V 50/60HZ	60W AC220V 50/60HZ
Touch on/off (Option)	Touch Screen (Button)	Touch Screen (Button)

HD Camera System Specification
Imager	l/3 Type CMOS Sensor
Picture elements	200K pixels
Lens	20x zoom F=4.7mm {WIDE)to 94.00mm(TELE), Fl.6 to F3.5 Zoom movement speed
Digital zooom	12x(240x width optical zoom]
Angle of view(H)	Approx 55.4 degrees (WIDE end) Approx 2.9 degrees (TELE end) (1080i mode) Approx 37.6 degrees (WIDE end) Approx 2.0 degrees (TELE end) (720p mode)
Min.working distance	10mm(WIDE end), 80αnm (TELE end)
Sync System	Internal
Min iIIumination	0.5 lux/ 1 / 300sec., 50%(High Sensitivity mode ON)
(1nterlace model)	1.7 LUX / 1 / 30 sec., 50% (Typical value) 0.26 Lux / 1/ 4sec(NTSC)， 3/1sec(PAL) (typical value) ICR-ON Mode 0.0005 Lux / 1 / 4 sec (NTSC), 1/3 sec(PAL)
Recommended iIIumination	100 to 100,000 Lux 1000 mm(Tele end)
S/N ratio	50dB (Weight ON)
Back light compensationn	ON/OFF
Electronic shutter speed	60/30 mode: 1/1 to 1/10000 sec，(22 steps) 5O/25 mode: 1/1 to 1/10000 sec，(22 steps)
White balanæ	Auto， ATW， lndoor， Outdoor， One push WB, Manual WB, outdoor Auto, Sodium Vapor Lamp (Fix/Auto]
Gain	Auto / Manual (-3 dB to +28dB. 16 steps) Max.Gain Limit (6 dB to 28 dB. 12 steps)
Wide dynamic range	ON / OFF / AUTO
Noise reduction	ON/OFF (level5 to 1/ OFF, 6 steps)
Color Enhancement	ON/OFF
Aperture Control	16 steps
Preset	6 POSITIONS
Serial interface	VlSCA protocol (TTL/CMOS) 9.6 Kbps, 19.2 Kbps, 38.4 Kbps. Stop bit. 1/2 bit
Storage temperature/Humidity	-20’C to +60’C(-4’F to +l40’F)/20% to 95%
Operating temperature/Humidity	-5'C to +60’C(32’F to +122’F)/20% to 95%
Power requirements/Power consumption	6 to 12V DC/3.1W (4.7W)
Weight	Approx. 270g (8.10z)
Dimensions	50.0 x 6O x 87.9 mm [2x2%x31/2 in.) (w/h/d)
Protocol	Command, Fastrax, Pelco-D, Pelco-P, VISCA

Solar Max LED 80 + 80

Model	LED 80	LED 80
Diameter of light head	640mm	640mm
Max. illuminance (Lux)	160,000 Lux at 1M	160,000 Lux at 1M
Color temperature(K)	5 Step(3,500K ~ 5,500K)	5 Step(3,500K ~ 5,500K)
Color Render Index(Ra.R9.R13)	98. 98. 98.	98. 98. 98.
Brightness control	10 Step (10~100%)	10 Step (10~100%)
illuminance Range	Φ 100 ~ 350 mm	Φ 100 ~ 350 mm
Depth of illuminance At60%	1,200 mm	1,200 mm
Number of LEDs	80 LEDs	80 LEDs
Lamp type	Bi Conves Lens	Bi Conves Lens
LED Life time	60,000 Hours ↑	60,000 Hours ↑
Focus control location	Handle of center	Handle of center
Handle	Easily detachable and sterilizable	Easily detachable and sterilizable
Power Supply	100W AC220V 50/60HZ	100W AC220V 50/60HZ
Touch on/off (Option)	Touch Screen (Button)	Touch Screen (Button)

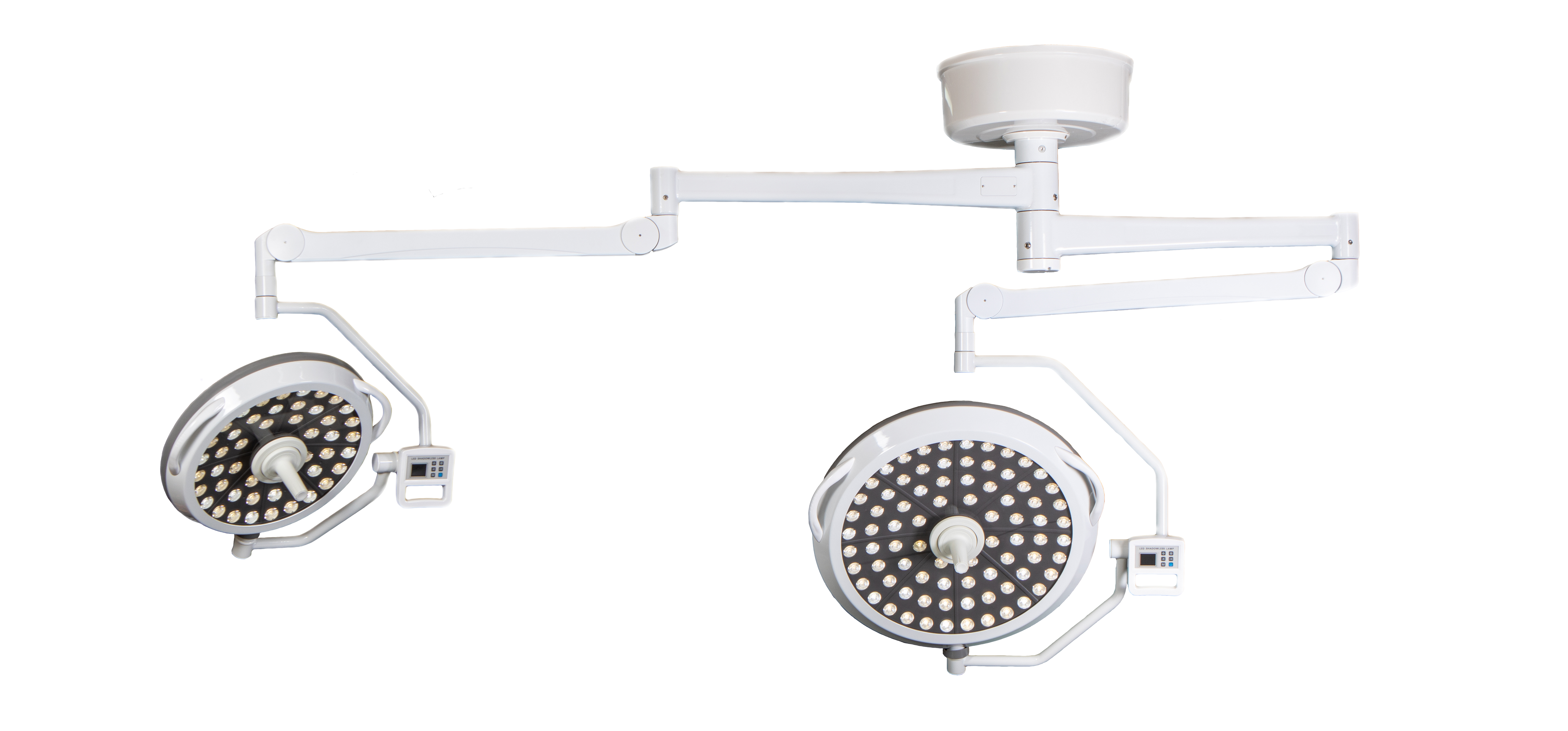

Solar Max LED 70 + 50

Model	LED 70	LED 50
Diameter of light head (mm)	700 mm	500 mm
Max. illuminance (Lux)	140,000 Lux at 1M	120,000 Lux at 1M
Color temperature (K)	3,000 K ~ 5,000 K	3,000 K ~ 5,000 K
Color Render Index(Ra.R9.R13)	95. 95. 95.	95. 95. 95.
Brightness control	10~100 %	10~100 %
illuminance Range	Φ 150 ~ 300 mm	Φ 150 ~ 300 mm
Depth of illuminance At60%	1,200 mm	800 mm
Number of LEDs	80 LEDs	48 LEDs
Lamp type	TRI Lens	TRI Lens
LED life time	60,000 Hours ↑	60,000 Hours ↑
Focus control location	Handle of Center	Handle of Center
Handle	Easily Detachable and Sterilizable	Easily Detachable and Sterilizable
Power Supply	100W AC220V 50/60HZ	100W AC220V 50/60HZ
Touch on/off	Button Panel	Button Panel

Solar Max LED 50 + 50

Model	LED 50	LED 50
Diameter of light head (mm)	500 mm	500 mm
Max. illuminance (Lux)	120,000 Lux at 1M	120,000 Lux at 1M
Color temperature (K)	3,000K ~  5,000K	3,000K ~  5,000K
Color Render Index(RaR9.R13)	95. 95. 95.	95. 95. 95.
Brightness control	10~100 %	10~100 %
illuminance Range	Φ 150 ~ 300 mm	Φ 150 ~ 300 mm
Depth of illuminance At60%	800 mm	800 mm
Number of LEDs	48 LEDs	48 LEDs
Lamp type	TRI Lens	TRI Lens
LED life time	60,000 Hours ↑	60,000 Hours ↑
Focus control location	Handle of Center	Handle of Center
Handle	Easily Detachable and Sterilizable	Easily Detachable and Sterilizable
Power Supply	100W AC220V 50/60HZ	100W AC220V 50/60HZ
Touch on/off	Button Panel	Button Panel

Solar Max LED 56 + 40

Model	LED 56	LED 40
Diameter of light head (mm)	680 mm	550 mm
Max. illuminance (Lux)	140,000 Lux at 1M	120,000 Lux at 1M
Color temperature (K)	4,300K(±200)	4,300K(±200)
Color Render Index(Ra.R9.R13)	95. 95. 95.	95. 95. 95.
Brightness control	10 Step (10~100%)	10 Step (10~100%)
illuminance Range	Φ 100 ~ 300 mm	Φ 100 ~ 300 mm
Depth of illuminance At60%	1,000 mm	800 mm
Number of LEDs	56 LEDs	40 LEDs
Lamp type	Bi Convex Lens	Bi Convex Lens
LED life time	60,000 Hours ↑	60,000 Hours ↑
Focus control location	Handle of Center	Handle of Center
Handle	Easily Detachable and Sterilizable	Easily Detachable and Sterilizable
Power Supply	60W AC220V 50/60HZ	50W AC220V 50/60HZ
Touch on/off	Button Panel	Button Panel

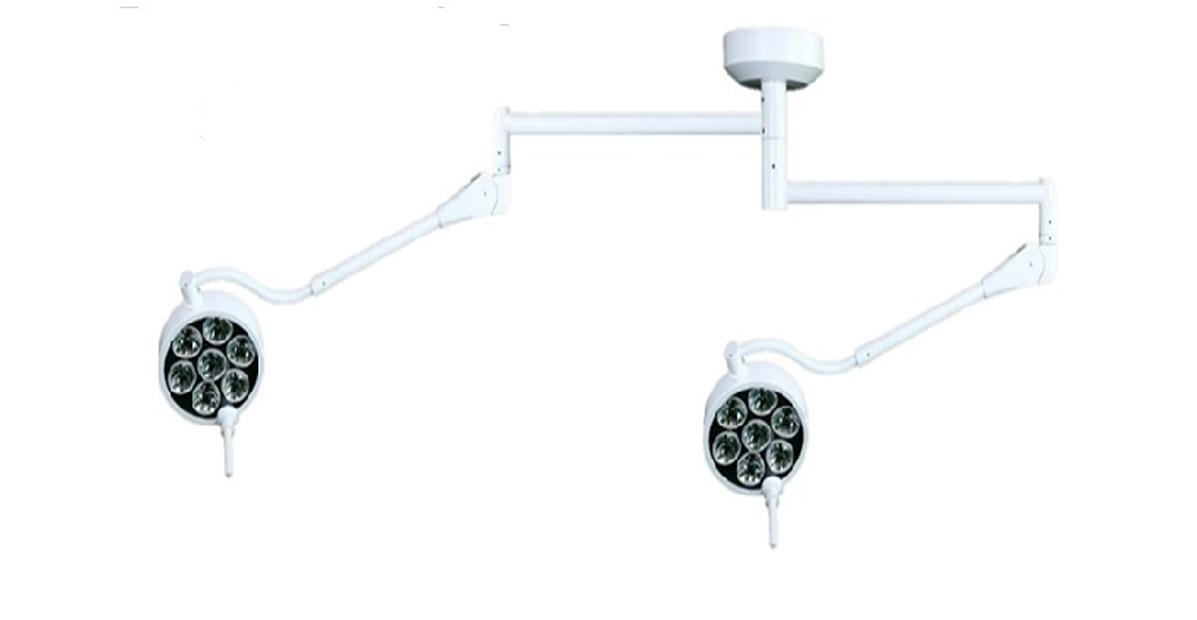

Solar Max LED 20 + 20

Model	LED 20	LED 20
Diameter of light head (mm)	300 mm	300 mm
Max. illuminance (Lux)	85,000 Lux at 1M	85,000 Lux at 1M
Color temperature (K)	4,300 K (±200)	4,300 K (±200)
Color Render Index(Ra)	85	85
Red Color Index(R9)	82	82
Brightness control	10 Step (10~100%)	10 Step (10~100%)
illuminance Range	Φ 180 mm	Φ 180 mm
Depth of illuminance	140 mm	140 mm
Number of LEDs	21 LEDs	21 LEDs
Lamp type	Reflectors	Reflectors
LED life time	60,000 Hours ↑	60,000 Hours ↑
Focus control location	Handle of Center	Handle of Center
Handle	Easily Detachable and Sterilizable	Easily Detachable and Sterilizable
Power Supply	50W AC220V 50/60HZ	50W AC220V 50/60HZ
Touch on/off	Button Panel	Button Panel
